High Temperature Pipe wrapping

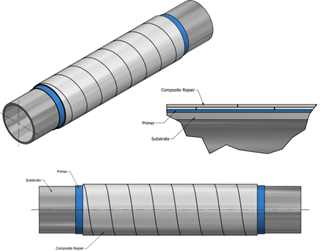

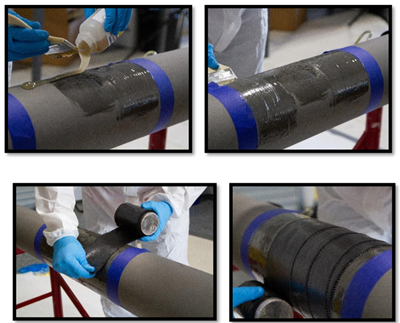

CSNRI is the world’s leading manufacturer of composite wrapping has collaborated with Innochems to promote High temperature pipe wrapping technique called DiamondWrap® system in Malaysia. The DiamondWrap® system includes a bidirectional weave of carbon fiber and a 100% solids epoxy, forming a composite system that is stronger than steel. The structural system forms a pipe around a pipe, and each successive wrap increases the pressure rating. Its bidirectional weave allows for strength in both the hoop and axial directions experiencing little or no creep properties over time, ensuring that there is no reduction in strength. Because of its low profile, DiamondWrap® can be installed on tees, elbows, straight runs of pipe, confined spaces and irregular surfaces that require structural reinforcement or leak containment. The adhesive properties of the epoxy allow it to be applied to most substrates.

CSNRI’s composite solutions address pipeline anomalies from metal loss and small deformations to large deformations, crack/crack-like features, as well as damage to process piping working in the range of -46ºC to 314ºC.
